Reusable Type
4G
GPS/LBS
2600mAh
-20～+45℃

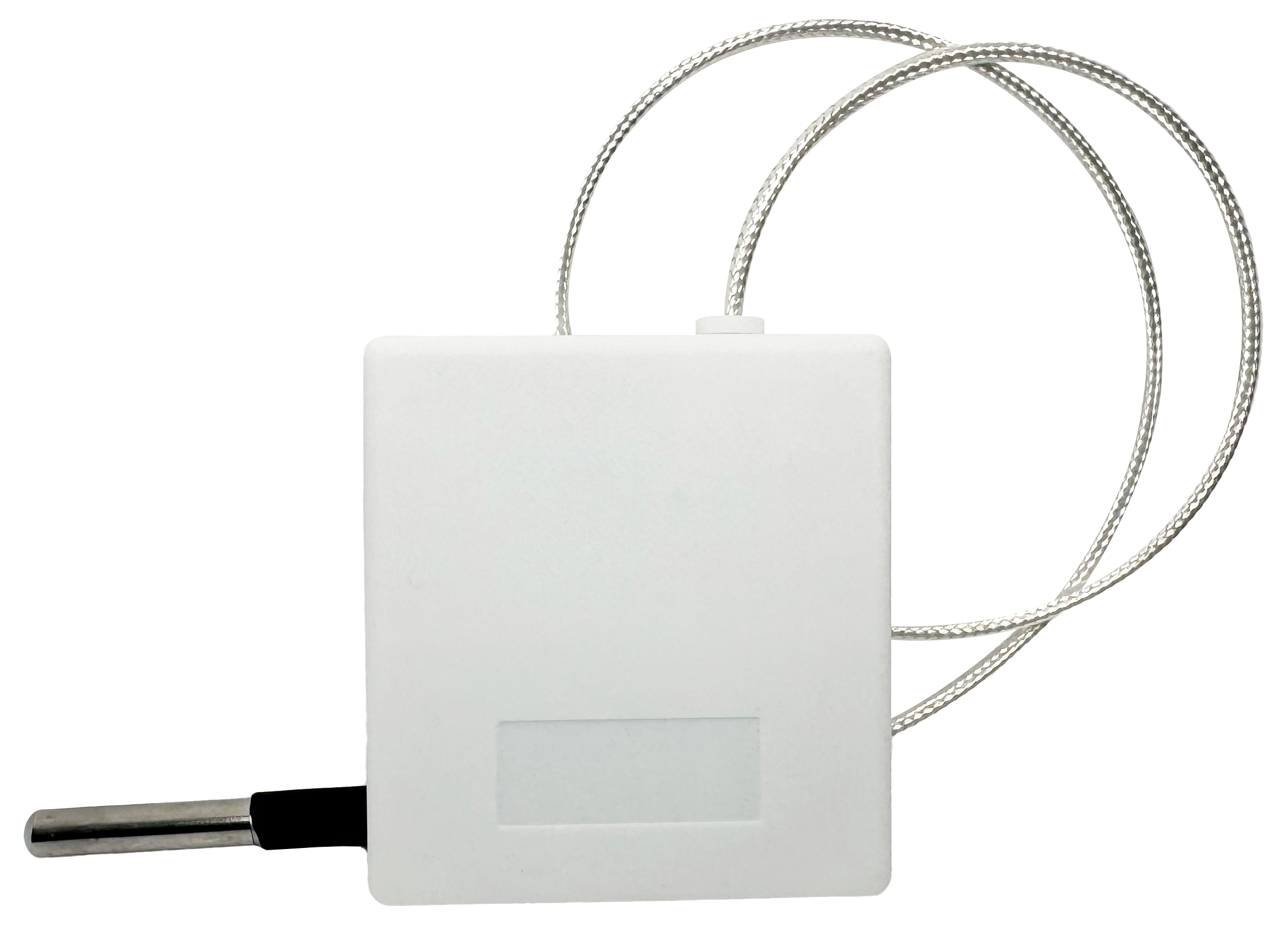

DL-M15C_30 Cloud Temperature Data Logger
The DL-M15C_30 is a cost-effective, screenless temperature data logger for cold chain transport and storage. Its external probe measures -30～+30℃ with ±0.5℃ accuracy. 4G connectivity uploads readings to the cloud for access through web, app and mini-program interfaces. Local storage holds more than 260,000 data sets, with automatic upload of offline records after reconnection. Sound, light, SMS and email alarms support temperature traceability throughout the journey.
View all temperature and humidity data loggersFunction
- Temperature monitoring for food and other temperature-sensitive cargo during transit and storage
- Industrial-grade external sensor with a -30～+30℃ measuring range
- Flexible probe deployment in coolers, refrigerated trucks and cold warehouses
- Real-time monitoring of transport and storage environments
Feature
- High-precision temperature measurement with ±0.5℃ accuracy
- Automatic data collection and storage
- Real-time cloud upload through 4G
- Screenless design with web, app and mini-program access
- Bluetooth printing and GPS/LBS positioning
Model
DL-M15C_30
4G GPS/LBS 800mAh 15 days
Product Specification
- Model No.
- DL-M15C_30
- Temperature Range
- External probe: -30～+30℃ / ±0.5℃
- Standby
- 15 days
- Recording Period
- 1 minute～24 hours, configurable
- Data Capacity
- >260,000 data sets
- Data Continuation
- Automatically uploads offline recorded data
- Probe Type
- External temperature probe
- Data Printer
- Bluetooth
- Parts
- Power adaptor
- Alarm Type
- Sound / Light / SMS / Email
- Transmission Type
- 4G
- Location Type
- GPS/LBS
- Battery
- Rechargeable lithium battery
- Waterproof Grade
- IP65
- Product Size
- 65 × 60 × 14 mm
- Weight
- 220 g
- Battery Capacity
- 800mAh lithium battery

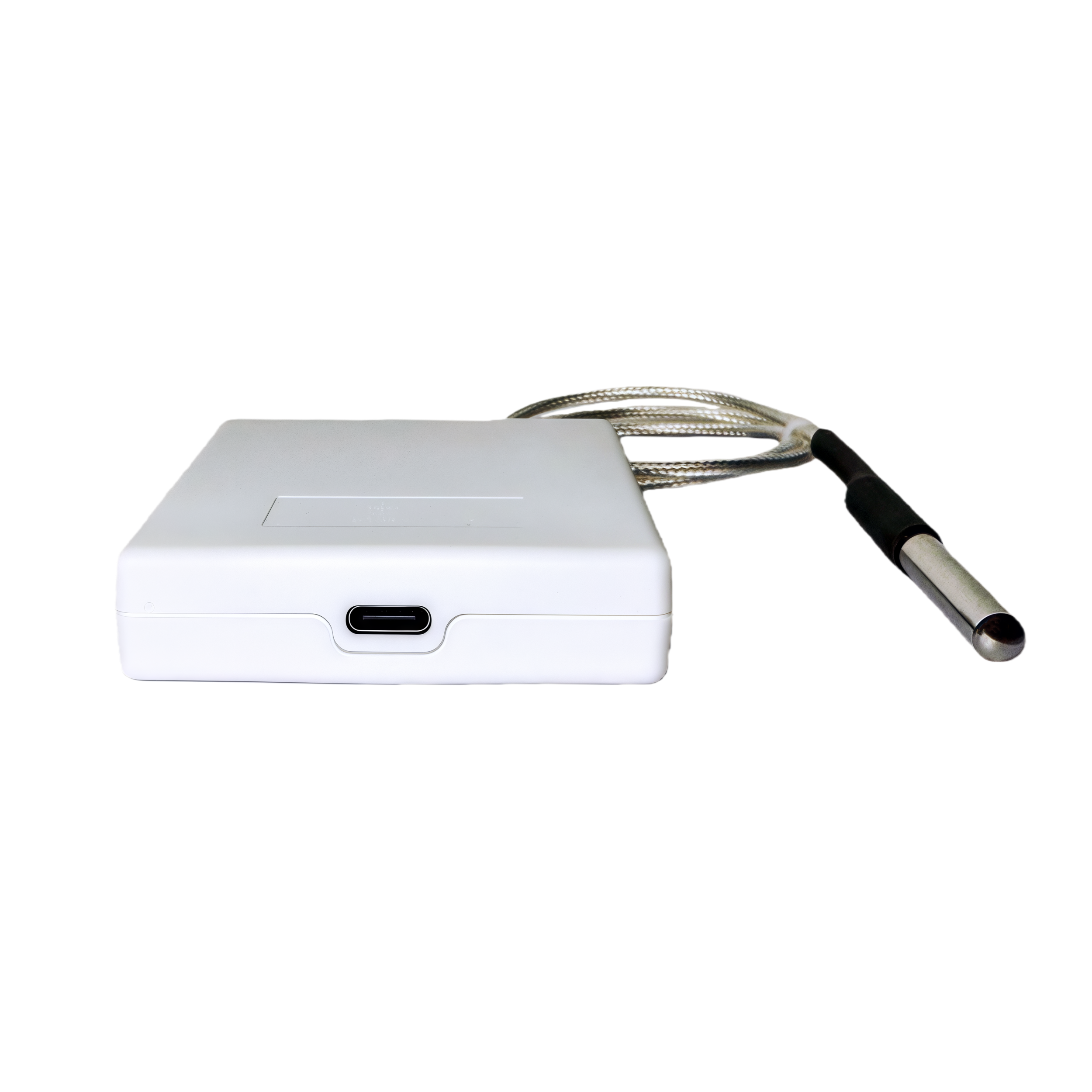

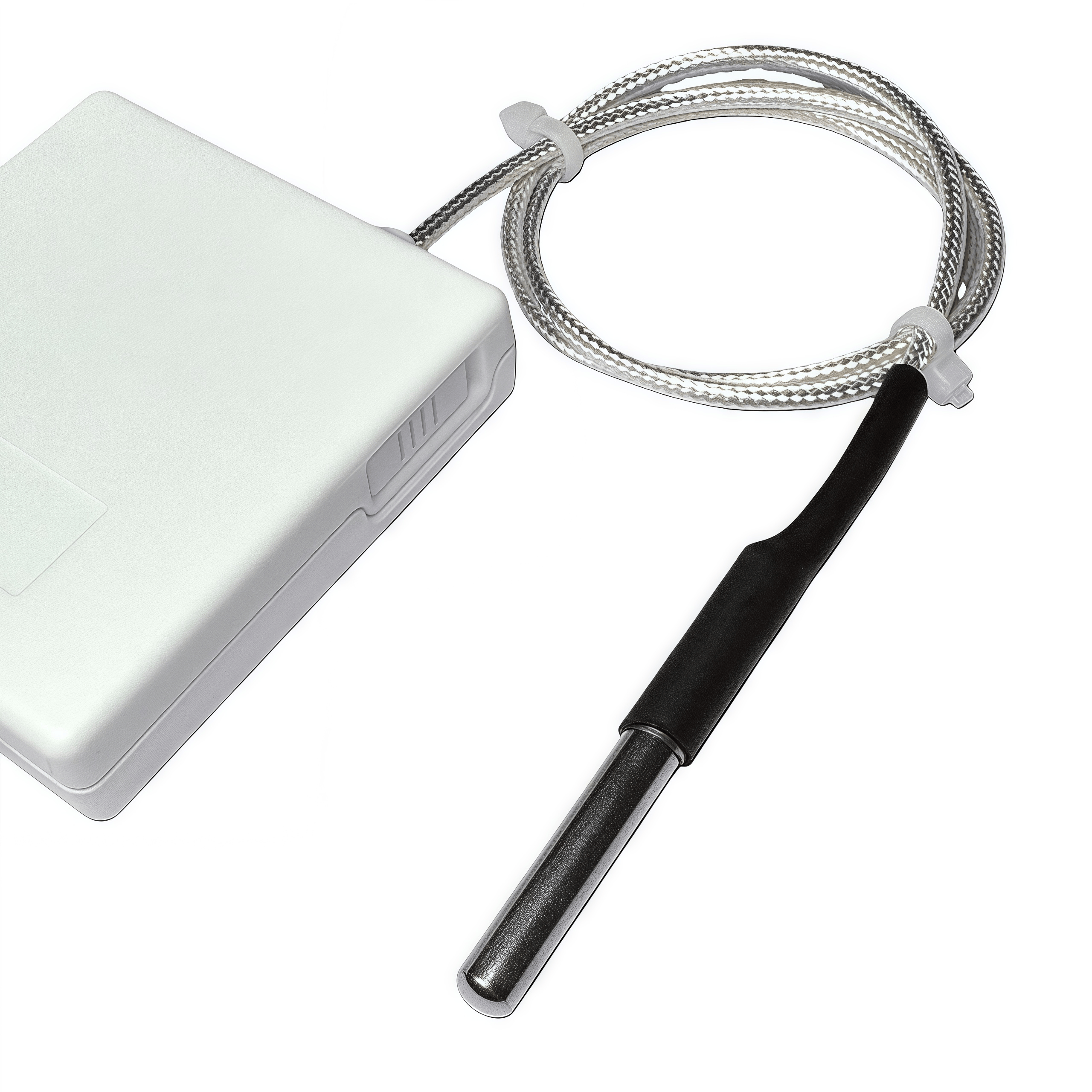

Detail Picture

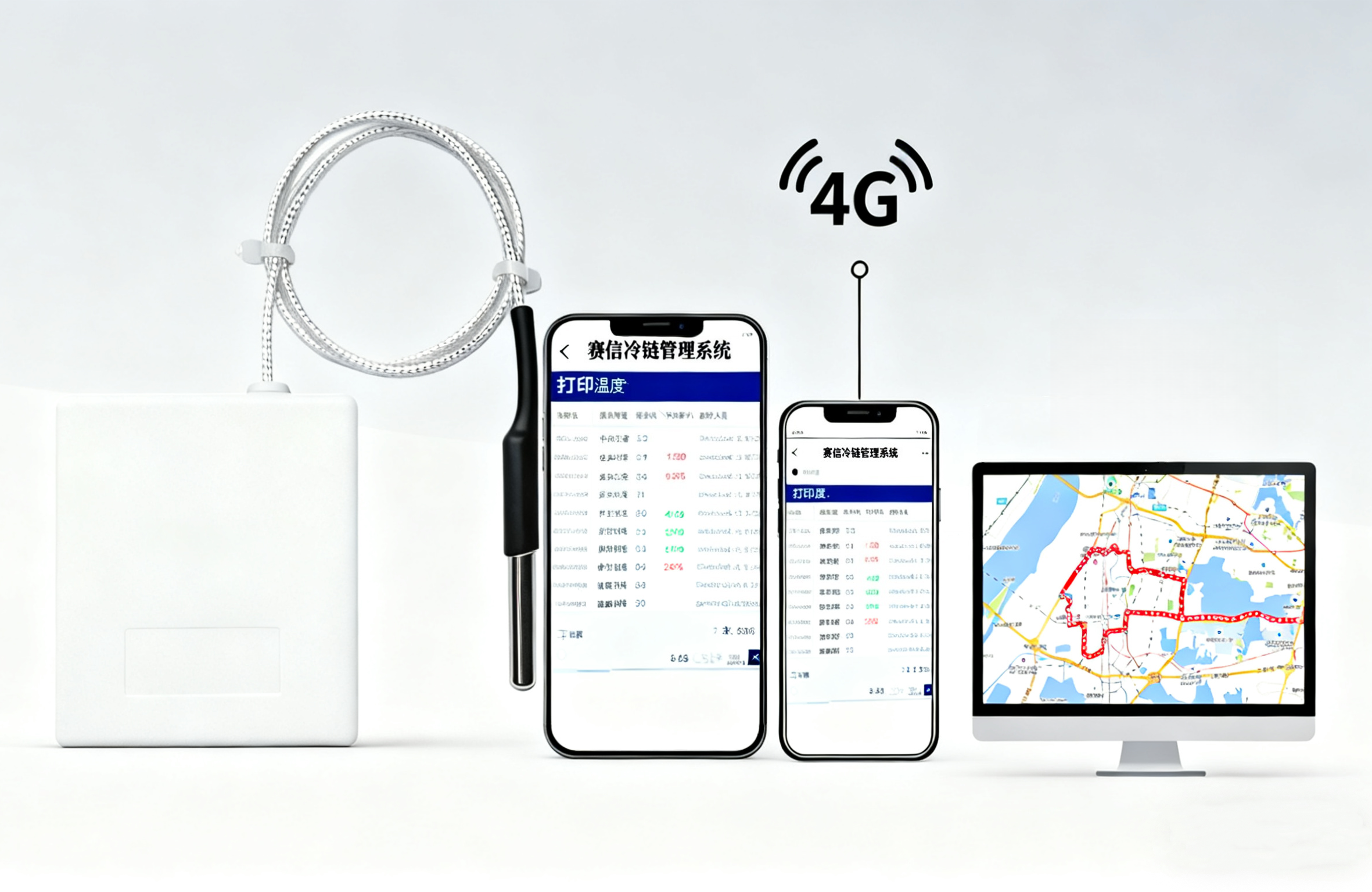

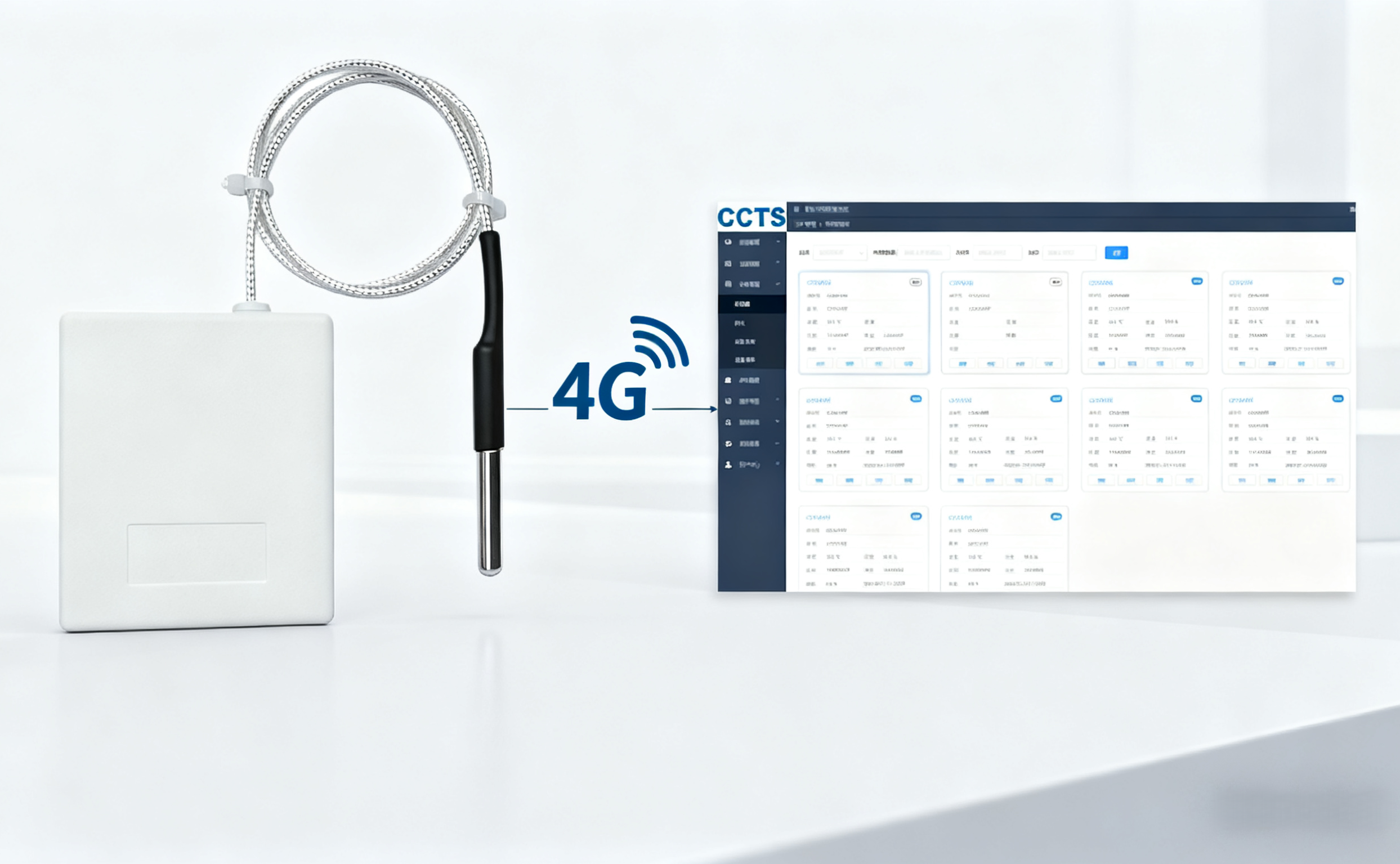

Cloud Monitoring and Connectivity

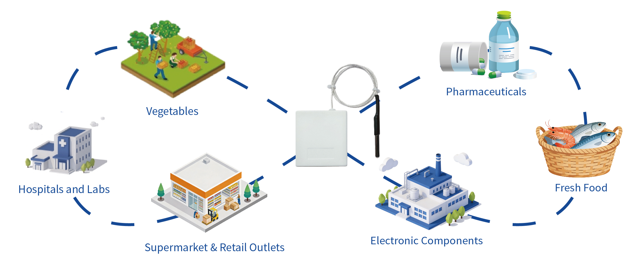

Application
- International transportation of medicines and hospital supplies
- Food and supermarket supply chains
- Temperature-sensitive electronic components
- Refrigerated transport and warehousing
