Reusable Type
PCM Coolant
4～165L
- 2～8℃
- 15～25℃
- -25～-15℃
72～96 hours

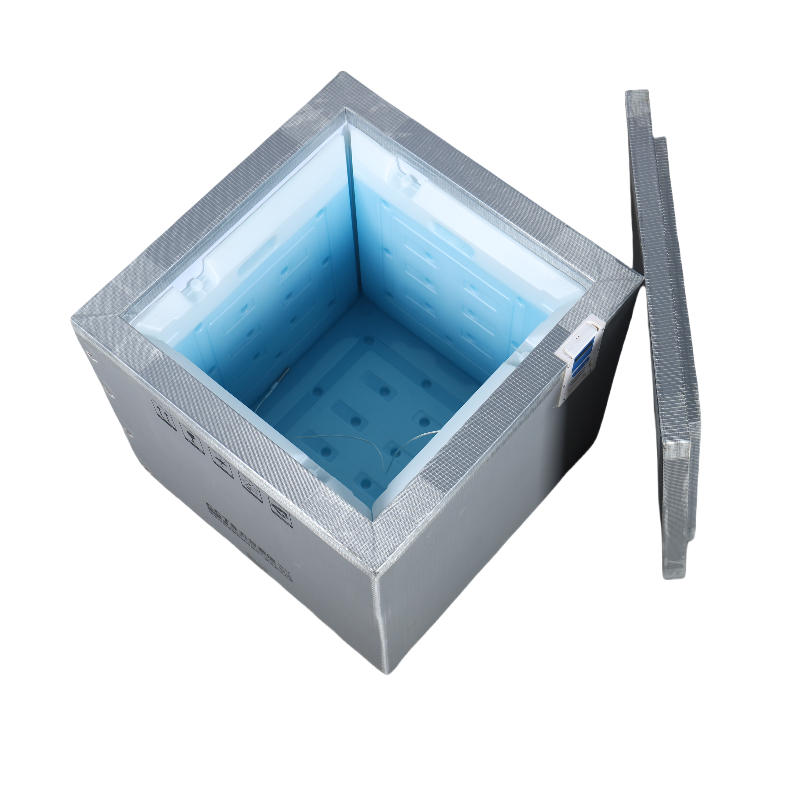

RV Plus Series Insulation Shipper
The RV Plus Series from CCTS CHINA is a reusable, cost-effective insulated shipper powered by PCM (Phase Change Material) ice packs. Its modular design provides long-duration thermal protection for year-round transportation, including extreme ambient conditions. The five models below offer 96, 168 or 240 hours of temperature control, depending on the model.
View Reusable Cold Chain PackagingFeature
- Up to 10 days of cooling preservation performance
- Pre-qualified according to ISTA, WHO and GSP
- Easy to use and assemble, with a detailed 3D manual and SOP manual
- Shock-absorbent, damage-resistant and economical
- Custom sizing, insulation materials, thicknesses and printing available
Switch Temperature Freely by PCM
【E】-30～-20℃
【K】-25～-15℃
【B】-20～-10℃
【J】-10～0℃
【F】0～+4℃/+5℃
【C】+2～+8℃
【D】+15～+25℃
【N】+25～+35℃
【U】+50～+60℃
Models
Select a model to view its specifications.
Product Specification
- Model No.
- NB4D-RV31A
- Payload Volume
- 31.7 Liters
- Temperature Range
- 2～8℃ / 15～25℃ / -25～-15℃
- Insulation Duration
- 96 hours (4 days)
- Coolant Type
- PCM Coolant
- Product Type
- Reusable Type
- Product Series
- RV Series
- Packaging Category
- Reusable Cold Chain Packaging

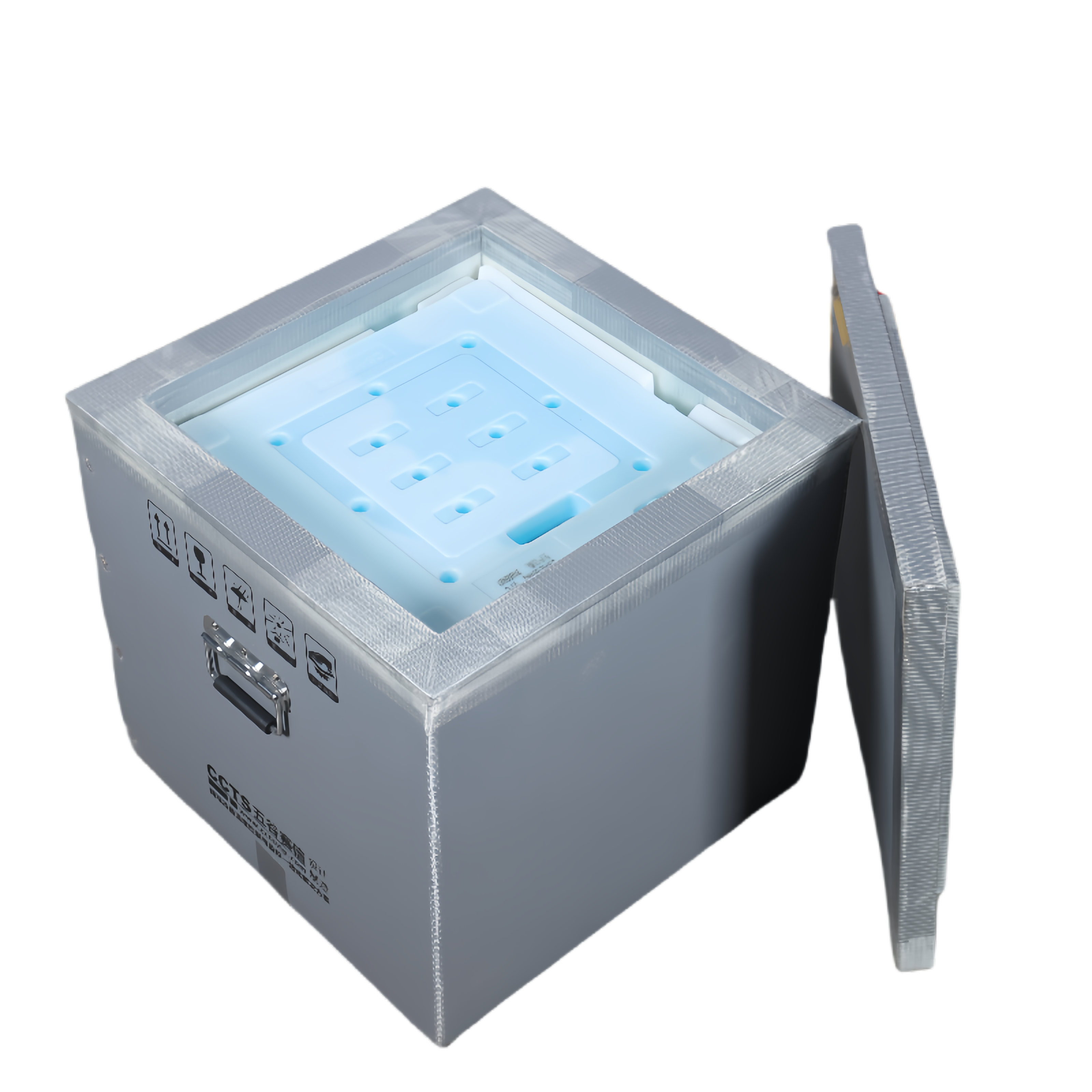

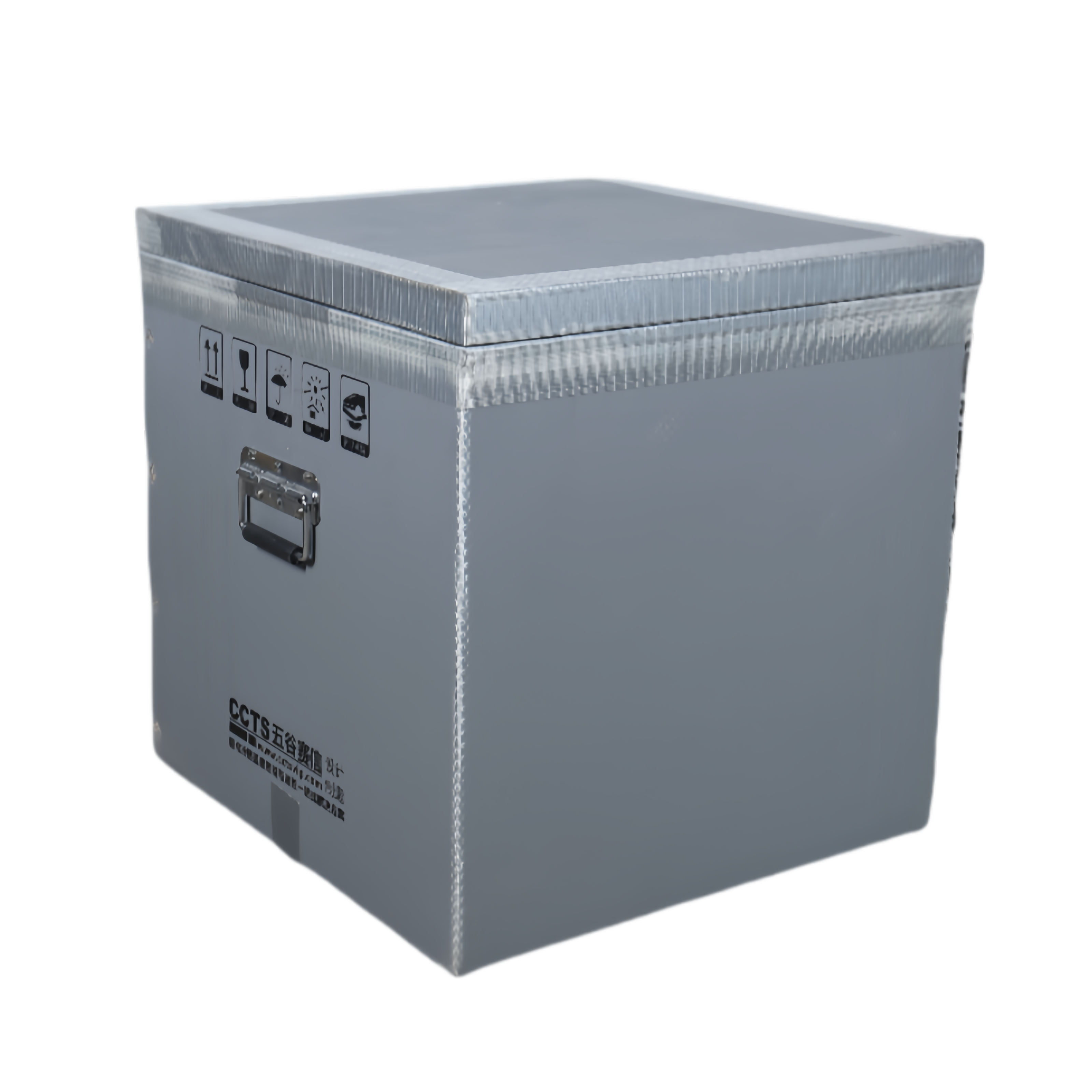

Detail Picture
Application
Suitable for international transportation of vaccines, drugs, reagents, sensitive chemicals and electronic components.

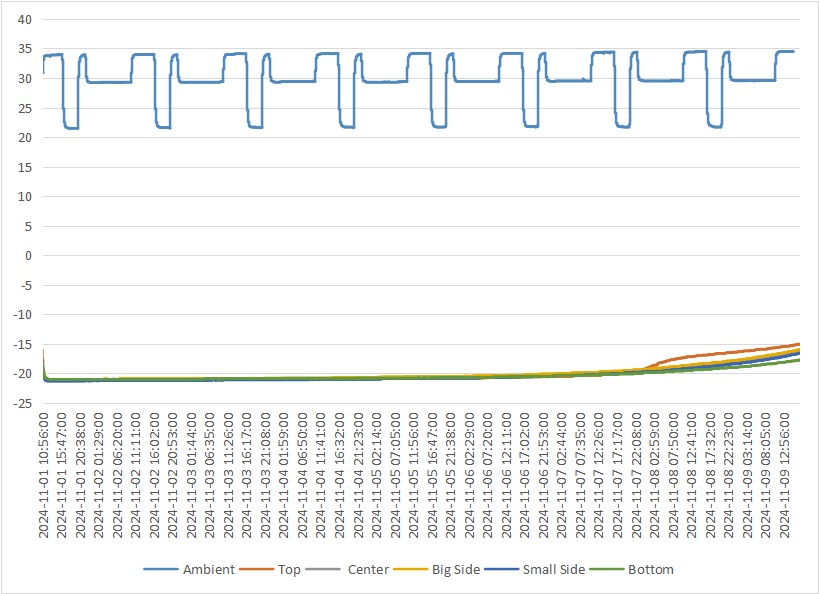

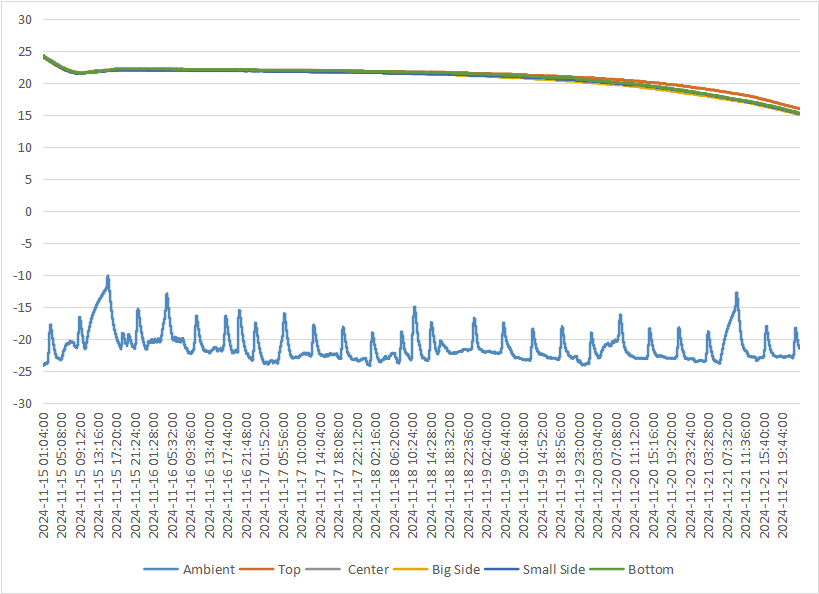

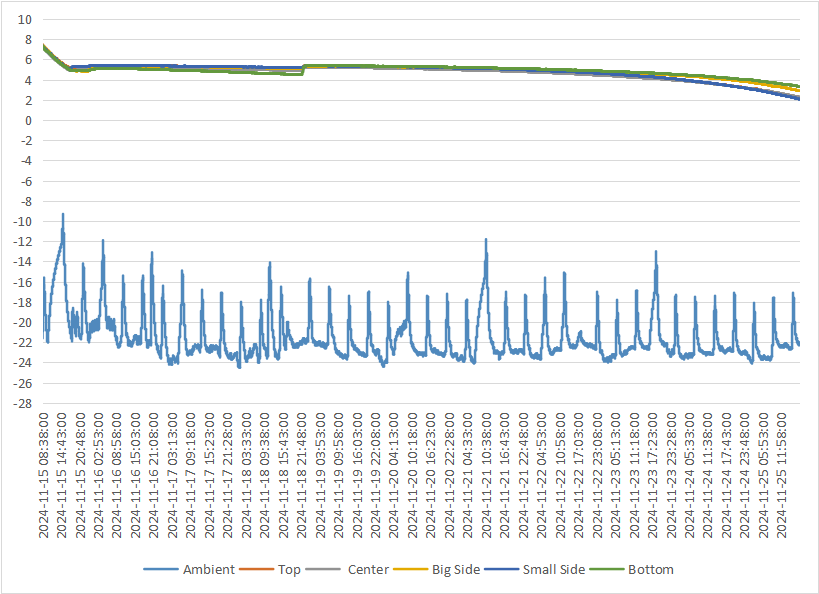

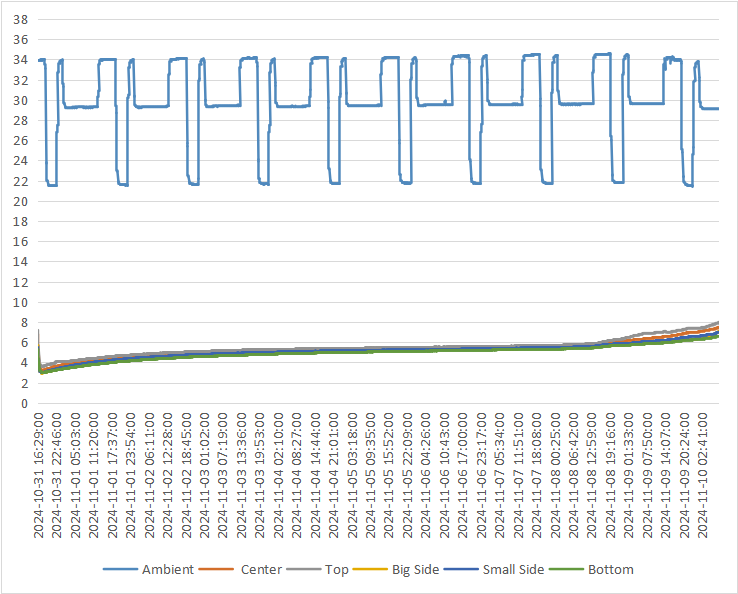

Testing Graph
